Sell Magnetic Agitator Tank

Quick Details

Mixer Type:Magnetic agitator
Application:Liquid
Additional Capabilities:Mixing pharmaceutical liquid or others
Place of Origin:Zhejiang, China (Mainland)
Brand Name:DF
Model Number:Magnetic Agitator Tank
structure: vertical or horizontal:Additional Capabilities: syrup, eyedrop, injection

Packaging & Delivery

Packaging Details:	WOODEN CASE
Delivery Detail:	30days

Specifications

Vacuum magnetic agitator tank
1.Material:SUS 304 / 316L
2.Vol:500~3000L
3.Applied to infusion injection,,biology,fine chemic

Application

Craft-making product which is applied to liquid preparation and various water treatment process in purgative area,such as infusion solution ,injection solution, eye drop, oral liquid etc.

Description

Product technical description
Specification: 500L~50000L
Material: SS316L or SS304
Surface finish: inside surface is Ra0.28~0.6μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.
Agitator: bottom/top magnetic agitator
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation
Jacket type: dimple jacket, full jacket, or coil jacket
Insulation material: rock wool/PUF
Components: vent filter, temp. gauge, level gauge, manhole, sight glass with lamp and cleaning ball or according to client’s detail requirement.
Manufacture standard for pressure vessel: GB150-1998, ASME or PED/23/EC

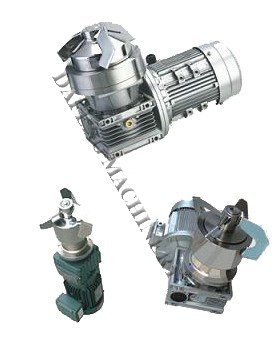

1. Magnetic stirring device is divided into the Top magnetic stirring and under magnetic stirring, magnetic stirring on the application of large-capacity (3-50m3) and large torque equipment. Under magnetic stirring with capacity less than (3m3) and health requirements of the equipment.

2. Interface uses a common international standard ISO standard card quick disc, materials imported 316L or 304, the inner surface of mirror-polished Ra ≤ 0.28 μm, the outer surface of matt or mirror polished.

3.Material: shell 304 and 316L (for selection).

4. Commonly flat-panel liquid level gauge, level gauge glass, level gauge static pressure sensors, ultrasonic level gauge available.

Working volume	Inner diameter	Outer diameter	Vessel height	Total volume
30L	400mm	500mm	400mm	44L
50L	400mm	500mm	600mm	69L
100L	500mm	600mm	650mm	130L
200L	600mm	700mm	1000mm	250L
300L	700mm	800mm	1250mm	370L
500L	900mm	1050mm	1150mm	650L
1000L	1100mm	1250mm	1480mm	1260L
1500L	1200mm	1350nmm	1700mm	1780L
2000L	1300mm	1500mm	1980mm	2200L
3000L	1500mm	1700mm	2150mm	3400L
4000L	1600mm	1750mm	2630mm	4000L
8000L	1900mm	2100mm	3200mm	8300L
