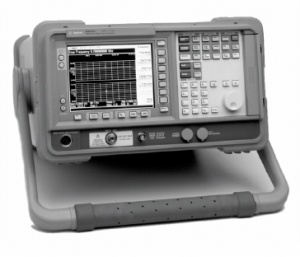

HP/AGILENT 8971C NOISE FIGURE TEST SET, 10 MHZ-26.5 GHZ by Naptech Test Equipment

Item Condition: Seller Refurbished
Brand: Agilent/HP
Model#: 8971C
Location: Lower Lake, United States
Price:

Naptech Test Equipment
707-995-7145

Contact the seller Add to Inquiry Cart

Product Description

The Agilent 8971C noise figure test set allows the 8970B to make noise figure measurements over an extended frequency range. Careful design and high-performance components, including a stable YIG filter, allow broadband single-sideband measurements from 10 MHz to 26.5 GHz with a single calibration and sweep. A low-noise preamplifier built into the noise figure test set lowers the second-stage noise figure, thereby reducing a major source of measurement uncertainty. Measurement modes in the 8970B allow for double down-conversion using the 8971C as the second downconverter.

Simultaneous gain and noise figure measurements for amplifier characterization

Easy to compensate for tuner insertion loss for transistor characterization

Only for use with the 8970B (cannot be used with the NFA series)

Noise figure SSB: Standard is <=18 dB at 10 MHz - 30 MHz. With Option 002 is <=32 dB typical at 22 GHz - 26.5 GHz

Input Standing Wave Ratio SSB: 2.25, 2.5, 1.5, 2, 3 depending on frequency and option

Image and Odd Harmonic Rejection SSB: 20 dB typical

Remote programming: HP-IB programmable except LINE switch

DSB gain: 28 dB minimum

Maximum operating RF noise input power: -29, -26, -20 dBm depending on option and frequency

Maximum safe RF input power: -5, +20 dBm depending on option

LO input power minimum: +7, +1 dBm depending on option

LO input power maximum: +20, +7 dBm depending on option
