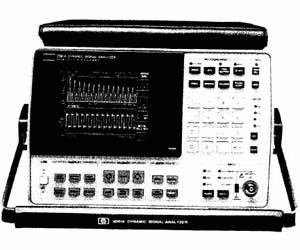

Agilent HP 3561A Dynamic Signal Analyzer. 125 uHz to 100 KHz. FFT Spectrum Analyzer by AccuSource
- Item Condition:
- Brand:
- Model#:
- Location:
- Price:
Product Description
The 3561A is a low frequency, high performance dual channel dynamic signal analyzer. Displays include a three-dimensional spectral map and time waveforms. The 3561A incorporates a 40K sample time buffer for later measurements and allows for acoustic measurements with its FFT-synthesized 1/3 and 1/2 octave measurements, together with the built-in analog A-weighted filter.
The analyzer also has a built-in tracking generator for stimulus-response measurements . With built-in waveform math, magnitude and phase measurements are possible. Digital processing is used to provide ultra-narrow resolution bandwidths down to 640 µHz. Digital processing also speeds up measurements; a measurement with 1 Hz resolution requires only a 1.5 second sweep.
In addition to spectrum measurements, the 3561A displays time waveforms similar to oscilloscope displays. A 40 K sample time buffer captures transients for examination in the time domain or analysis in the frequency domain. The 3561A is also an excellent analyzer for acoustic testing.
- 125 µHz to 100 kHz
- 80 dB dynamic range
- Single channel
-
