CHMER G64F by Chmer EDM
- Item Condition:
- Brand:
- Model#:
- Location:
- Price:
Product Description
SPECIFICATIONS
X,Y axis mm 600x400 U,V,Z travel mm 100x100x300 Max. size of working piece (WxDxH) mm 910x700x295 Max. weight of working piece kgs 600 XY Feed Rate mm/min Max.800 Motor system axis AC servo motor Wire Diameter Range mm ¢0.15~¢0.3 (¢0.25) Max. Wire Feed Rate mm/sec 300 Wire Tension gf 300~2500 Max. taper angle(°)/workpiece thick.(mm) - ±21°/100(wide-angled nozzle,DA+DB=15mm) Outside dimension (WxDxH) mm 2500x2450x2250 N.W(including power and coolant system) kgs 3200 Coolant tank system L 340
DESCRIPTION
G64F FLUSHING TYPE
Versatile and economical for General Purpose
High level of flexibility with low running cost, the ideal machines for any EDM work shop.
Similar Products
|
|
|
Condition : NEW
Model#: A422S
Location:
Taiwan
|
|
|
Condition : NEW
Model#: G32F
Location:
Taiwan
|
|
|
Condition : NEW

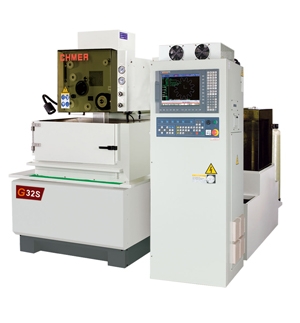

Model#: G32S
Location:
Taiwan
|
|
|
Condition : NEW

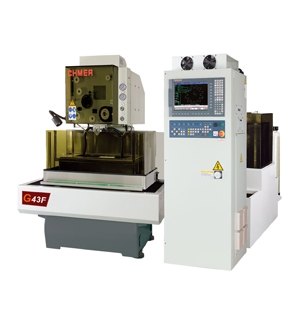

Model#: G43F
Location:
Taiwan
|
|
|
Condition : NEW

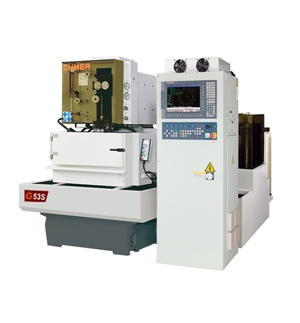

Model#: G53S
