7). Three-layers paddle style, made of stainless steel.

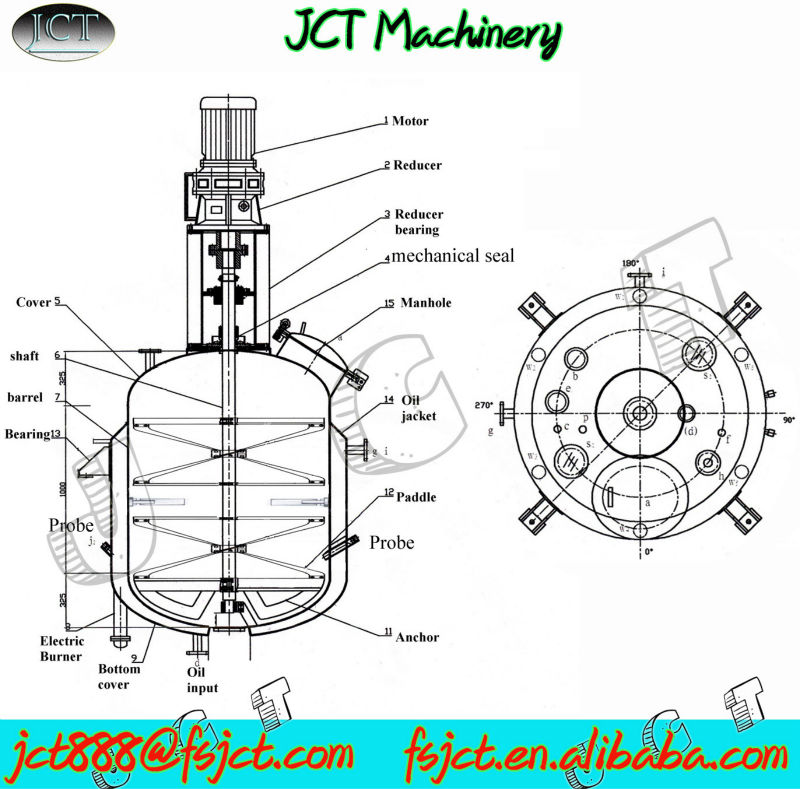

8). Consists of body, gears, mixing devices, heating devices, cooling devices, seal composition.
9). Equipped with distillation column, condenser, water separator, collecting cans, filters ect.
10). Supply complete production line. As well as productin technology!
chemical reactor
2. How to select the appropriate machine:
Take a example by the FYF-1000
FYF means the reactor kettle series(mainly for liquid, solvent making industry), 1000 means the design volume is 1000liters. The effect volume is about 80% of the tank, that means 800 liters/batch.
The daily production capacity depends on the reacting time.
chemical reactor
3. The parameter of the chemical reactor:
Type
volume
Heating mode
Structure
Paddle structure
Shaft seals
Material
Remarks
FYF-50
68L
Three choices:
1.Electric heating.
2.Steam heating
3.Hot water/ oil heating
Three choices:
1.Jacketed with oil/ water
2.Outer pipe/ tube
3.Outer and inner pipe/ tube
Three layers:
anchor paddle +
block + ribbon ;
turbine type,
with a dispersing disc.
Three choices:
1.Single mechanical seal
2.Double mechanical seal
3.Packing
SS304/ SS316L + Q235
1.The power of motors, stirring speed level determined according to actual requirements.
2.The thickness of the cylinder pressure to be based on response.
FYF-100
115L
FYF-200
220L
FYF-300
330L
FYF-500
535L
FYF-1000
1050L
FYF-1500
1550L
FYF-2000
2080L
FYF-2500
2600L
FYF-3000
3120L
FYF-4000
4120L
FYF-5000
5150L
FYF-6000
6150L
FYF-8000
8180L
FYF-10000
10200L
FYF-12000
12200L
FYF-16000
16200L
FYF-20000
20200L
FYF-50000
50300L
Any any other types or any other special requirements, we can specially design for you!
Our credo - " QUALITYand SERVICE first, PROFIT second !"
4. Pictures of the chemical reactors:

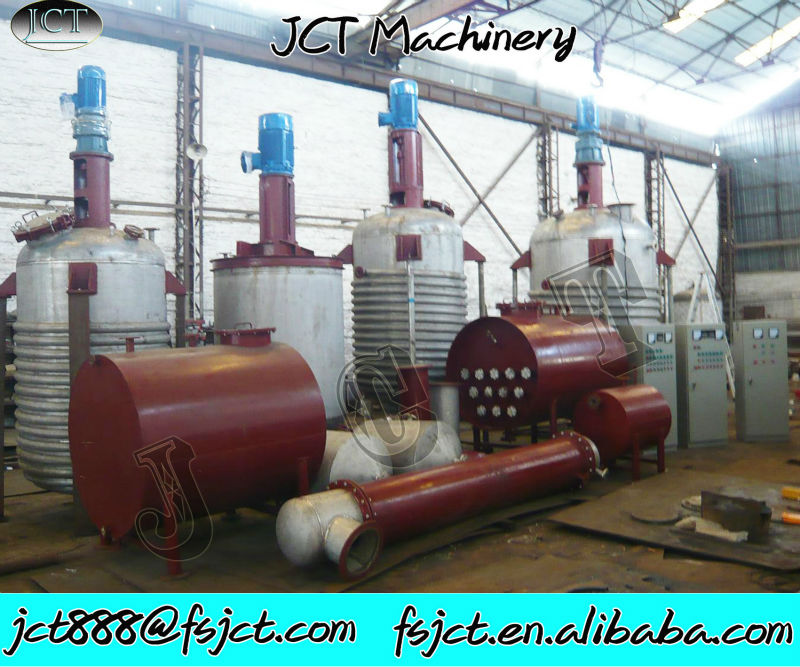

Outter & inner pipe chemical reactor - 20,000L
Outter & inner pipe chemical reactor - 20,000L
The 16,000L outer & inner pipe chemical batch reactor
The 30,000L outer & inner pipe chemical reaction vessel
The 10,000L outer coil chemical reactor

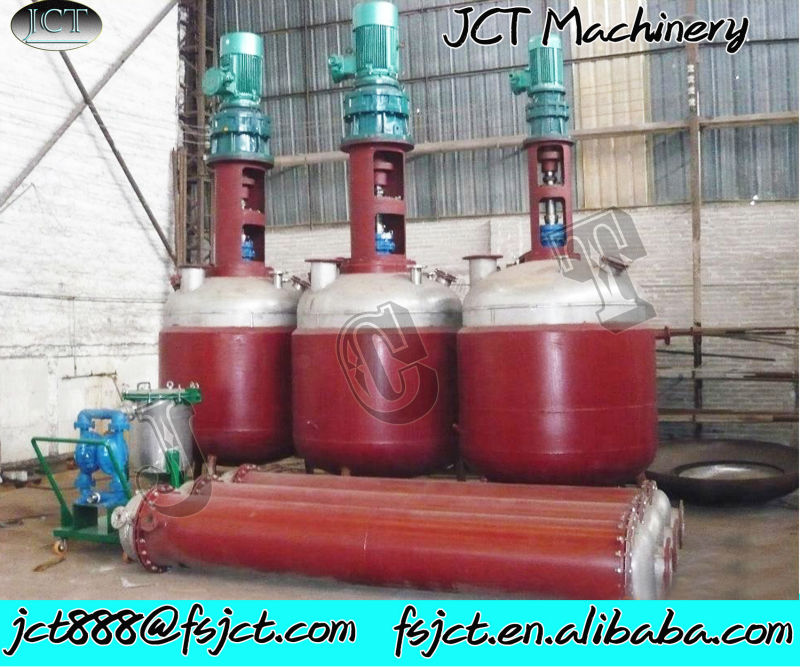

The 8,000L jacketed chemical reactor

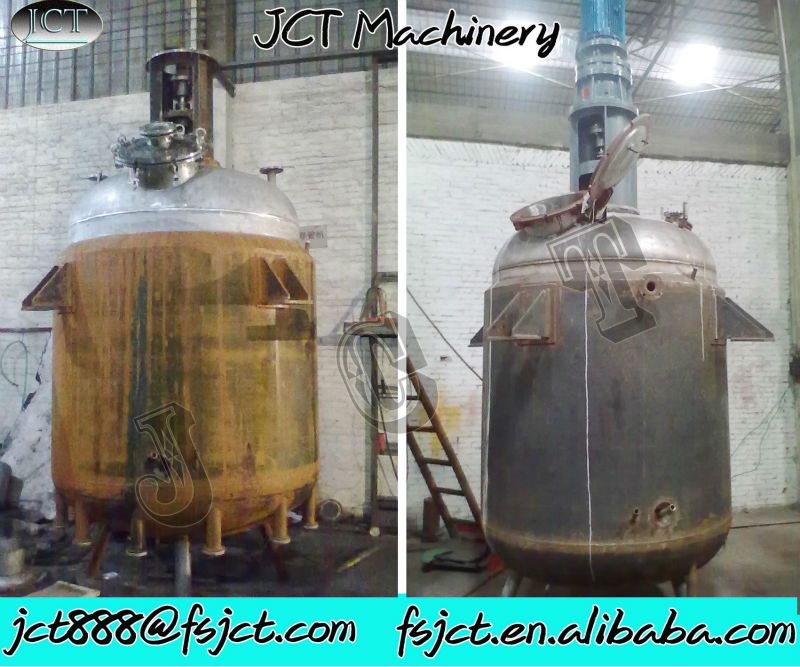

The 8,000L jacketed reactor in making
The finished 8,000L jacketed reactor
JCT 8,000L jacketed chemical batch reactor

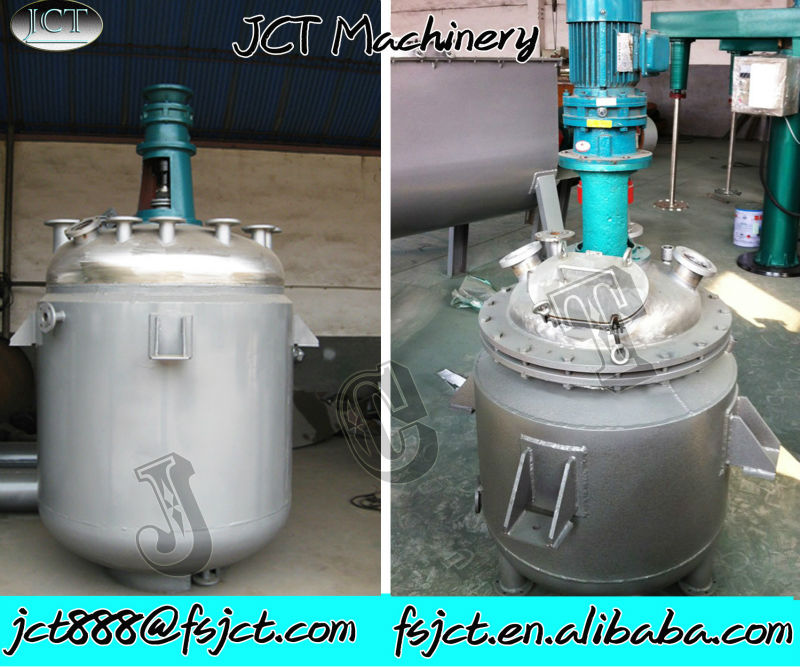

JCT 6,000L and 1,000L jacketed reaction vessel
JCT chemical batch reactors - equipment for glue/ adhesive
JCT chemical reactors, your right choice!
5. Why choose us?
1). Profession:
We have focused on this area for over 10 years, and the boss of JCT is a professional engineer who has 20 years' experience in what we are concentrating on!
2). Powerful team:
A 5-experienced-engineer designing team + a 35-skilled-technician team + a 10-passionate-sales team make up the JCT big team.
3). Achievement:
JCT was set up at 2004, through about 10 years' endeavor, our products has been sold to most important industrial district in China, such as Guangdong, Shangdong, Jiangsu, Zhejiang, Fujian and so on. And we have edged ourselves into the top 5 in China.
From 2009, JCT started the international marketing. Now, we have set our feet in North America, Europe, South Aria, Africa etc.
