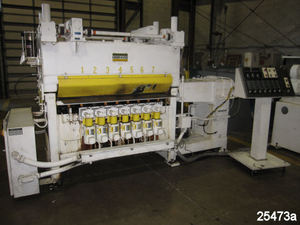

RED BUD / HERR VOSS by National Machinery Exchange Inc
- Item Condition:
- Brand:
- Model#:
- Location:
- Price:
Product Description
SPECIFICATIONS
THICKNESS RANGE ......... .020" - .075" (.067") COIL WIDTH .............. 72" - 12" COIL WEIGHT ............. 40,000# COIL OD ................. 72" COIL ID ................. 19" - 24" STACK WEIGHT ............ 20,000# STACK LENGTH ............ 144" COMPONENTS INCLUDE: COIL STORAGE RACK COIL CAR/FLOOR STANDING MANDREL UNCOILER MOTORIZED EXPANSION HOLD DOWN ROLL, POWERED PEELER IN/OUT ADJUSTMENT UP/DOWN ADJUSTMENT HEAVY DUTY STRAIGHTNER, MODEL: SM572, 7 ROLLS, ENTRY PINCH ROLLS, 5" DIAMETER ROLLS. HERR VOSS PRECISION LEVELER (NEW 2000), MODEL: VKL 84/1.156-19/13-4HI, WIDTH 72", MAX. THICKNESS .067", MIN THICKNESS .016", 19 WORK ROLLS, WORK ROLL DIA. 1.156", 13 BACKUP ROLL FLIGHTS, 11 ADJUSTABLE BACKUP ROLL FLIGHTS, SPEED 300 FPM, HORSEPOWER TO DRIVE LEVELER ONLY 75. AUTO LOOP CONTROLS, LOOPING PIT CASCADE ROLLS, CONTOURED EXIT SUPPORT RAMP, EDGE TRIM, MODEL ET10-3, HI CARBON HI CHROME KNIVES. SCRAP CUTTER, THREADING SYSTEM, RBI MOTOR GRIP FEED, MODEL FBM 9 D 72-72, LENGHT FROM 0 - 12'. RED BUD SHEAR, STACKER, DROP TYPE, SIDE CHAIN DISCHARGE CONVEYOR OVER 40 STROKES PER MINUTE AT 5', RBI CONTROL SYSTEM AND HYDRAULIC POWER UNIT, CENTRAL HYDRAULIC UNIT, PROGRAMMABLE CONTROLLER, LOAD & MONITOR MODULE, COMPLETE LINE. COMPLETE LINE INSTALLED AND UNDER POWER INCLUDES AVAILABLE DRAWINGS AND PRINTS
